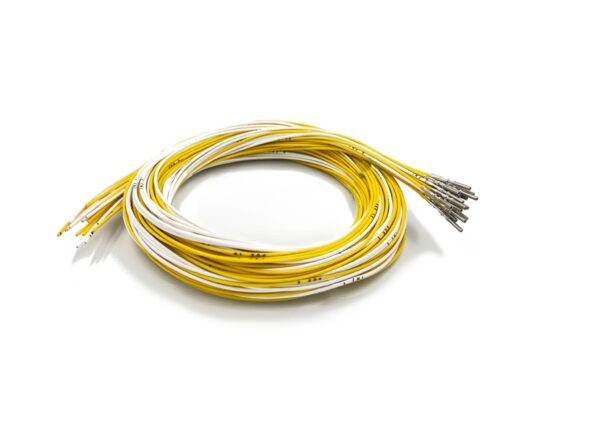

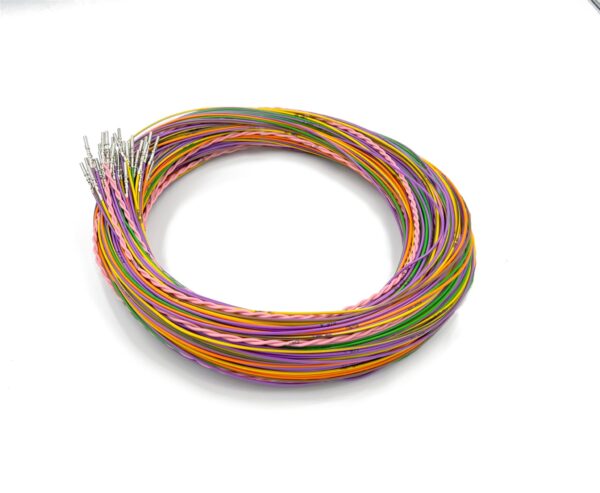

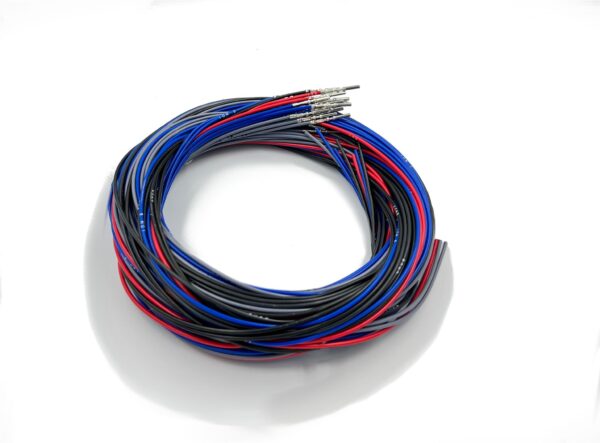

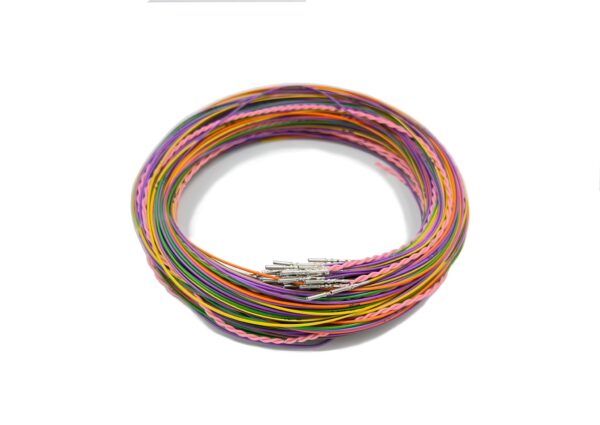

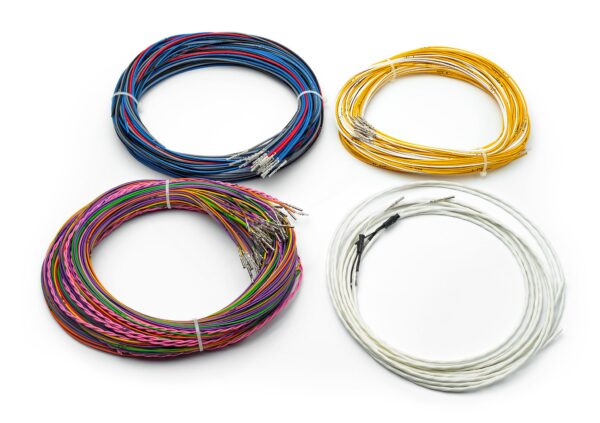

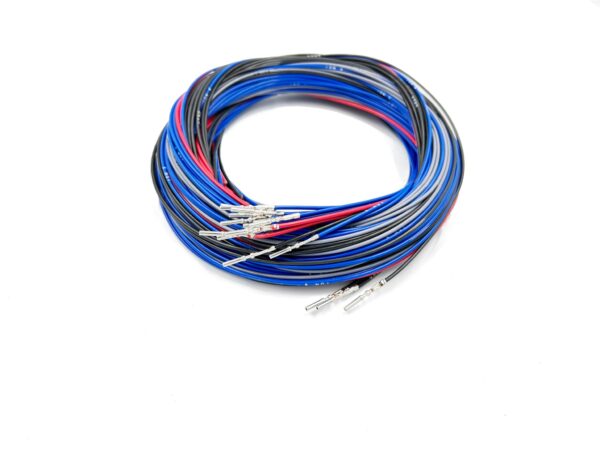

Ecumaster EMU PRO-8 – preterminated harness labeled

Universal pre-crimped harness dedicated for Ecumaster EMU PRO-8.
Wires are labeled.
The cables have different colours
length: 2,5m
plugs are not included

Spec:
Injectors – Bialy/White – 0,5mm^2 – 1x INJ1
Injectors – Bialy/White – 0,5mm^2 – 1x INJ2
Injectors – Bialy/White – 0,5mm^2 – 1x INJ3
Injectors – Bialy/White – 0,5mm^2 – 1x INJ4
Injectors – Bialy/White – 0,5mm^2 – 1x INJ5
Injectors – Bialy/White – 0,5mm^2 – 1x INJ6
Injectors – Bialy/White – 0,5mm^2 – 1x INJ7
Injectors – Bialy/White – 0,5mm^2 – 1x INJ8
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN1
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN2
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN3
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN4
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN5
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN6
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN7
Ignition – Niebieski/Blue – 0,75mm^2 – 1x IGN8
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX1
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX2
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX3
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX4
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX5
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX6
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX7
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX8
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX9
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX10
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX11
AUX – Żółty/Yellow – 0,5mm^2 – 1x AUX12
H-Bridge – Szary/Gray – 0,75mm^2 – 1x HB1A
H-Bridge – Szary/Gray – 0,75mm^2 – 1x HB2A
H-Bridge – Szary/Gray – 0,75mm^2 – 1x HB3A
H-Bridge – Szary/Gray – 0,75mm^2 – 1x HB1B
H-Bridge – Szary/Gray – 0,75mm^2 – 1x HB2B
H-Bridge – Szary/Gray – 0,75mm^2 – 1x HB3B
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN1
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN2
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN3
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN4
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN5
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN6
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN7
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN8
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN9
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN10
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN11
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN12
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN13
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN14
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN15
Analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIN16
Precision analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIP1
Precision analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIP2
Precision analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIP3
Precision analogs – Fioletowy/Purple – 0,35mm^2 – 1x AIP4
PGND – Czarny/Black – 0,75mm^2 – 1x PGND – C30
PGND – Czarny/Black – 0,75mm^2 – 1x PGND – A11
PGND – Czarny/Black – 0,75mm^2 – 1x PGND – A19
PGND – Czarny/Black – 1mm^2 – 1x PGND – A17
PGND – Czarny/Black – 1mm^2 – 1x PGND – B19
AGND, DGND – Brązowy/Brown – 0,35mm^2 – 3x GND
Digital – Zielony/Green – 0,35mm^2 – 1x DIG1
Digital – Zielony/Green – 0,35mm^2 – 1x DIG2
Digital – Zielony/Green – 0,35mm^2 – 1x DIG3
Digital – Zielony/Green – 0,35mm^2 – 1x DIG4
Digital – Zielony/Green – 0,35mm^2 – 1x DIG5
Digital – Zielony/Green – 0,35mm^2 – 1x DIG6
Digital – Zielony/Green – 0,35mm^2 – 1x DIG7
Digital – Zielony/Green – 0,35mm^2 – 1x DIG8
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB1IP
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB1VS
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB1RC
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB1VG
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB1HT
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB2IP
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB2VS
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB2RC
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB2VG
WBO – Żółto-Czarny/Black-Yellow – 0,35mm^2 – 1x WB2HT
+5V – Pomarańczowy/Orange – 0,35mm^2 – 2x +5VA
+5V – Pomarańczowy/Orange – 0,35mm^2 – 2x +5VB
+12V – Czerwony/Red – 1mm^2 – 2x +12V
+12V Switched – Czerwony/Red – 0,35mm^2 – 1x +12SW
CAN – Różowy/Pink – 0,35mm^2 – 1x CAN1L
CAN – Różowy/Pink – 0,35mm^2 – 1x CAN1H
CAN – Różowy/Pink – 0,35mm^2 – 1x CAN2L
CAN – Różowy/Pink – 0,35mm^2 – 1x CAN2H
LIN – Różowy/Pink – 0,35mm^2 – 1x LIN

+

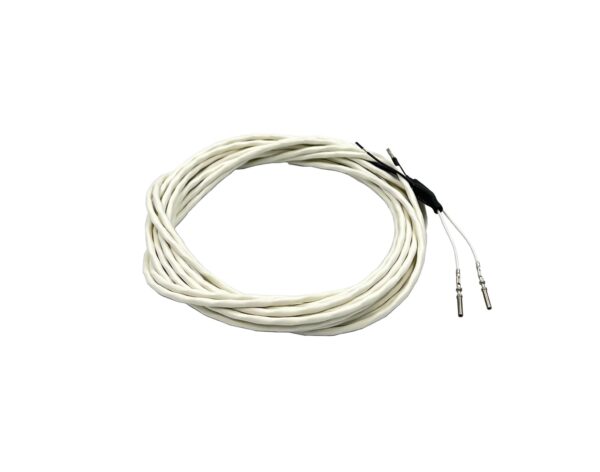

2x ekranowany/shielded wire raychem
