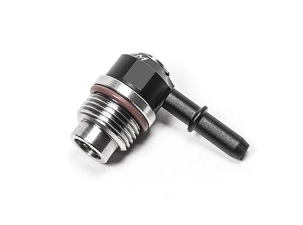

10AN ORB Swivel Banjo PCV Valve to 5/16IN SAE Male Radium Engineering

20-1000-10313-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8″-14 threads)
Outlet: 5/16″ SAE Quick Connect Male
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26″ (6.7mm) clearance is required for the O-ring to properly seat.
