Wilwood 260-4894 Tandem Master Cylinder

Tandem Master Cylinder – Product Summary

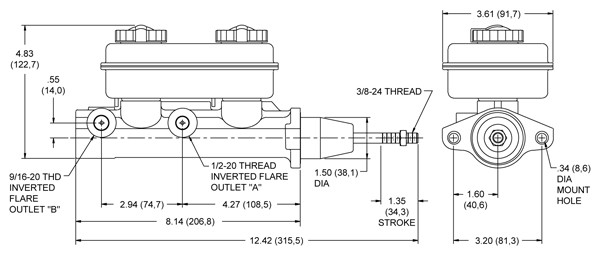

Made from durable lightweight aluminum with a large capacity plastic reservoir and dual outlet bores, this master cylinder utilizes standard O.E.M. internal components. Standard factory mounting bolt holes can be adapted to racing pedal assemblies with an optional mounting adapter bracket (including push rod and dust boot, see diagram below). This lightweight (2.5 pounds) reliable master cylinder is used for Drag Racing, Late Model Stock Cars, Street Rod and Off Road applications.



Bore Size 1-1/16″

Area (in²) 0.880

Stroke 1.35



Type Tandem Outlet

Outlets 2

Material Aluminum / Plastic

Finish Anodize



Overall Length(in) 12.42″

Flange to End Length (in) 8.14″

Outlet Size 1 (in) 1/2-20 IF

Outlet Fit 1 (in) 1/2-20 to 3/16 Tube Nut

Outlet Size 2 (in) 9/16-20 IF

Outlet Fit 2 (in) 9/16-20 to 3/16 Tube Nut
