Wilwood 120-11028 HM5 Hydra-Mechanical Floating Mount Caliper Left 1 Piston
Wilwood 120-11028 HM5 Hydra-Mechanical Floating Mount Caliper Left 1 Piston
  1. Wilwood 120-11028 HM5 Hydra-Mechanical Floating Mount Caliper Left 1 Piston
  2. Wilwood 120-11028 HM5 Hydra-Mechanical Floating Mount Caliper Left 1 Piston

Wilwood 120-11028 HM5 Hydra-Mechanical Floating Mount Caliper Left 1 Piston

127,99 €

Dostupno po isteku zaliha

SKU: WIL-120-11028 Kategorije: , Marka:

HM5 Hydra-Mechanical

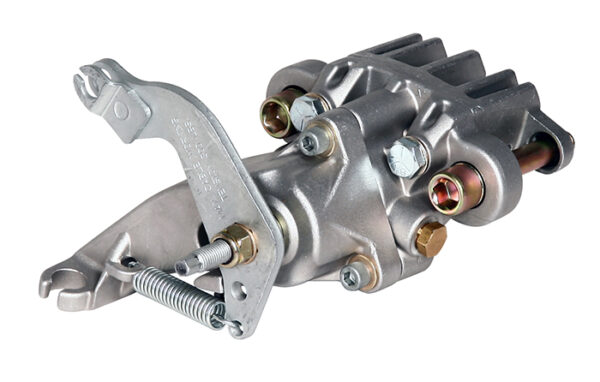

Wilwood’s HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00″ or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper.

Pistons
Piston Count 1
Piston Area (in²) 1.06
Piston Type Stainless
Dust Boot Yes
Rotor Dimensions
Rotor Width (in) 0.19
Rotor Diameter(in) 11.20
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Duty Rating & Material
Material Cast Aluminium
Weight(Lbs) 2.4
Colors & Finish
Color Clear
Finish Clear Anodize

Mounting
Mount Center(in) 3.00
Mount Position
Mount Side Left Hand
Mount Type Floating



Rotor Compatibility
Rotor Width (in) 0.19
Maximum Rotor Width (in) 0.19
Minimum Rotor Width (in) 0.15
Maximum Rotor Diameter(in) 11.20
Minimum Rotor Diameter(in) 6.00
Piston Specifications
Piston 1 Bore (in) 1.19
Piston 2 Bore (in)
Piston 3 Bore (in)
Total Piston Area (in²) 1.06
Težina 2 kg
